瀏覽次數：7世晃電磁式風機技術特性：
工作原理 Operating Principle:

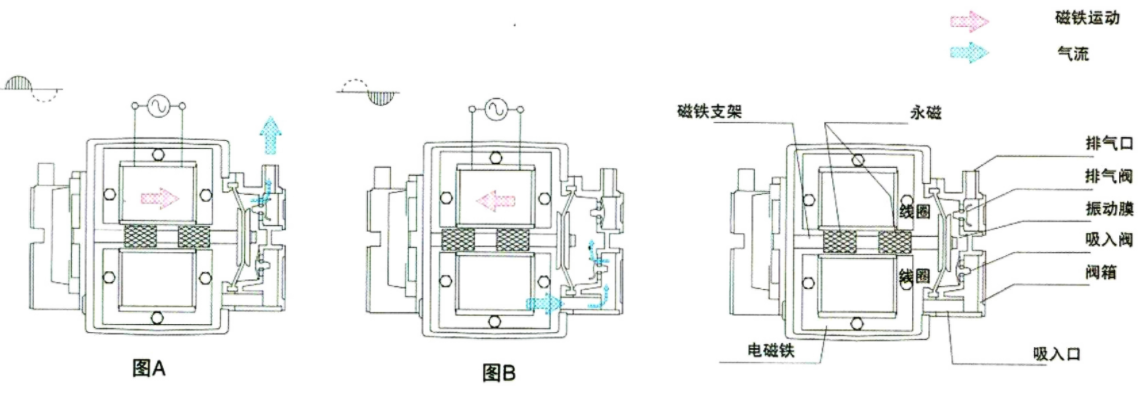

氣泵的工作原理是通過交變電流產生交變磁場，使磁鐵來回震蕩，帶動振動膜，壓縮空氣。磁鐵先朝著圖A中箭頭的方向運動，然后朝著圖B中的箭頭方向運動。磁鐵以等同電源頻率在電磁場之間來回運動，磁鐵震蕩時，連接著振動膜，改變閥箱的容積，產生壓力和真空。
Linear compressors function by enercizing electromaanets that oscilate a maanet in opposite directions. Firstthe maanet moves in the direction of the arrow in Fia. A and then in the direction of the arrow in fig. B. The maanemoves back and forth between the electromagnets at the same frequency as the power supply. The magnet isconnected to two diaphrams and as the maanet oscillates, it changes the valve box volume, which creates vacuumorpressure.
優點 Advantages
用途 Applications
無需機油 Comdletely Oil free
污水處理凈化槽Waste Water Treatment Septic Tank
低噪音，低電耗，低振動 Very little pulsation,Low noise
水產養殖、觀賞魚等增氧用
緊湊輕便結構 Compact and light constructionAdding oxygen for breeding beach,ornamental fish, etc.
容易保養 Low maintenance
氣泡浴池Bubble Bath
吸排兩用 Pressure&vacuum Type
臭氧產生、移動廁所 Producing OzoneMobile Restroom
高可靠性的自動開關配置
機器空氣源(空氣冷卻器，噴墨打印機)
High quality auto-stopper inclusiveAir source for machine (air cooler, inkiet printer
空氣懸浮連接，低振動 Air Susension-style connection
真空產生用(真空吸筆) Producing vaccum(vacuum suction pen)
散熱好，使用長壽命
按摩器 Air massager
High heat dissipation, long life expectancy
健康醫療器械用(防褥瘡氣墊床)
低損耗的空氣回路，省電Health care equipment(anti bed sore mattress)
Low Dressure loss Air circuit
實驗室儀器 Laboratory equipment

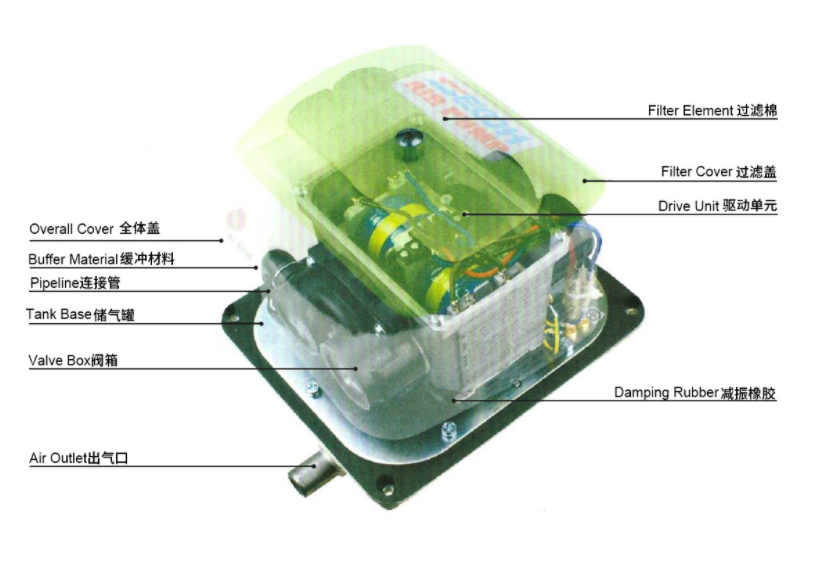

結構示意 Struction:
